Dongguan, China · Manufacturing mold bases since 2015
Standard plastic mold bases, injection mold bases and custom non-standard mold frames — machined in our own CNC shop, not resold through a trading company.
Send your drawing, quantity and target date — we reply with a firm price and date. Usually within one business day.
Malaysia: WhatsApp +60 11 6143 9313 · China / global: WhatsApp +86 198 2755 5750
7 daysmost mold bases, order to shipment
Why buyers switch to us
Delivery reliability, throughput, and what you actually pay. Those are the three things we built the company around.
Most mold bases ship in 7 days from order confirmation. Rush jobs are quoted with a fixed date, not a range you have to pad.
Capacity is in our own building. When your program scales up, the parts stay on our machines and the schedule stays yours.
No intermediate trader between your order and the machine. Same drawings, same steel grades — without the layer of markup.
Product lines
Eleven product families. Standard items are built from our own patterns and shipped fast; everything else is machined to your drawing.
Steel grades we machine most often — confirm your grade with the RFQ:

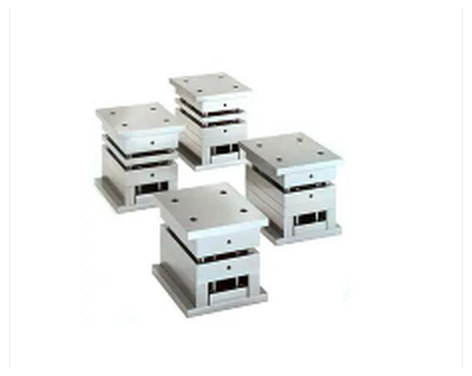

Pin-point gate, three-plate and side-gate systems built to standard sizes.
7-day lead time · 1 set MOQ
Complete A/B plate assembly with guide pillars, bushes and ejector pattern.
Built to your drawing · CMM checked
Frames ready for your cavity insert, supplied as a matched plate set.
Plates not split · Matched sets
Non-standard sizes, pocket layouts and cooling patterns per drawing.
DWX/DXF/STEP/IGES accepted
Ground and lapped working faces for tight fit and clean parting lines.
Finish grinding · Ground faces
Heavier plate sets and wear-resistant construction for die casting dies.
Built to drawing · Hardened options
Press die sets and hardware mold bases for stamping and forming tools.
Plate pairs · Guide posts
Oversized plates, base plates and machine parts machined to print.
Large envelope · CNC milling
Mold steels cut to size and supplied with your machined plates.
Cut to size · Mill stock
Three-dimensional sculpted surfaces and functional geometry that general shops decline.
Specialist capability · Quoted individually
Mold bases supplied at HRC52 hardness for high-wear applications.
Hardened · Quoted individually
Do not see your part? If it is a mold base, a mold frame or a machined steel plate, send the drawing — we will tell you plainly whether we can make it.
Custom work

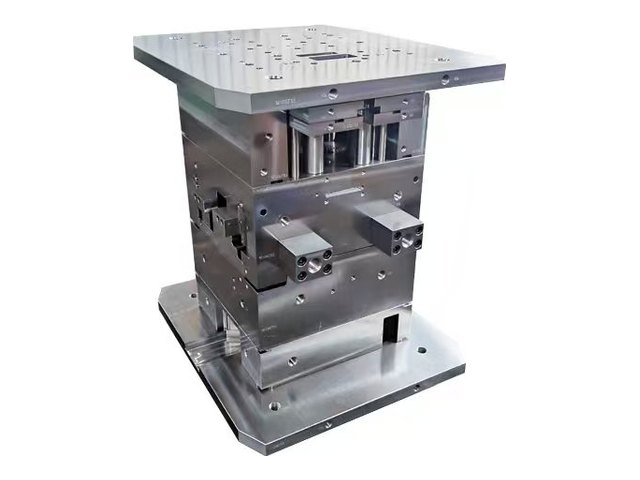

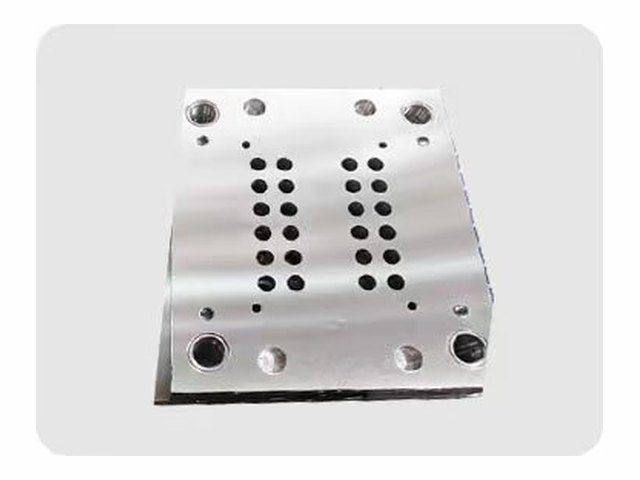

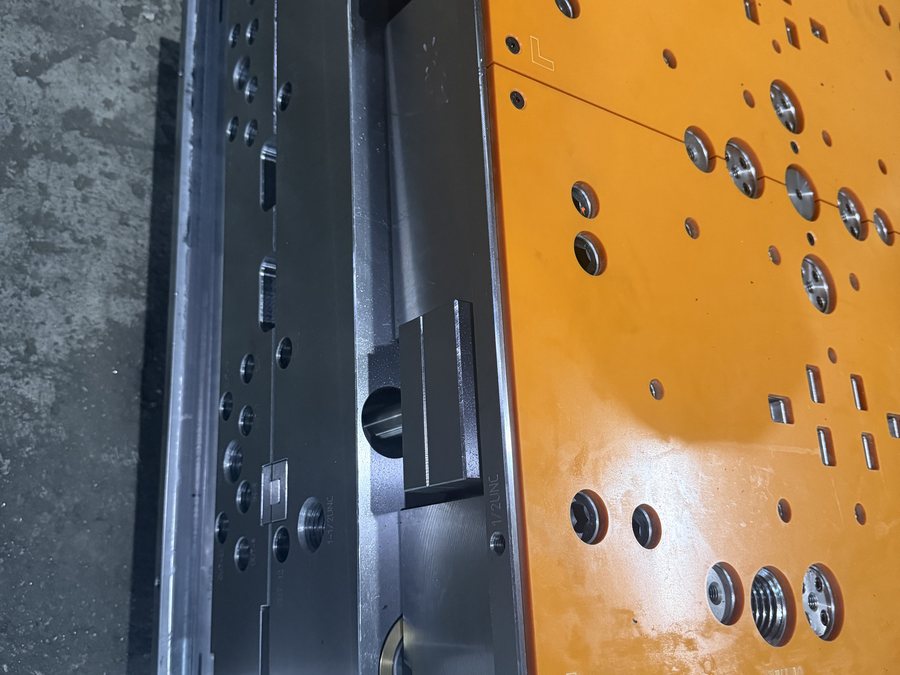

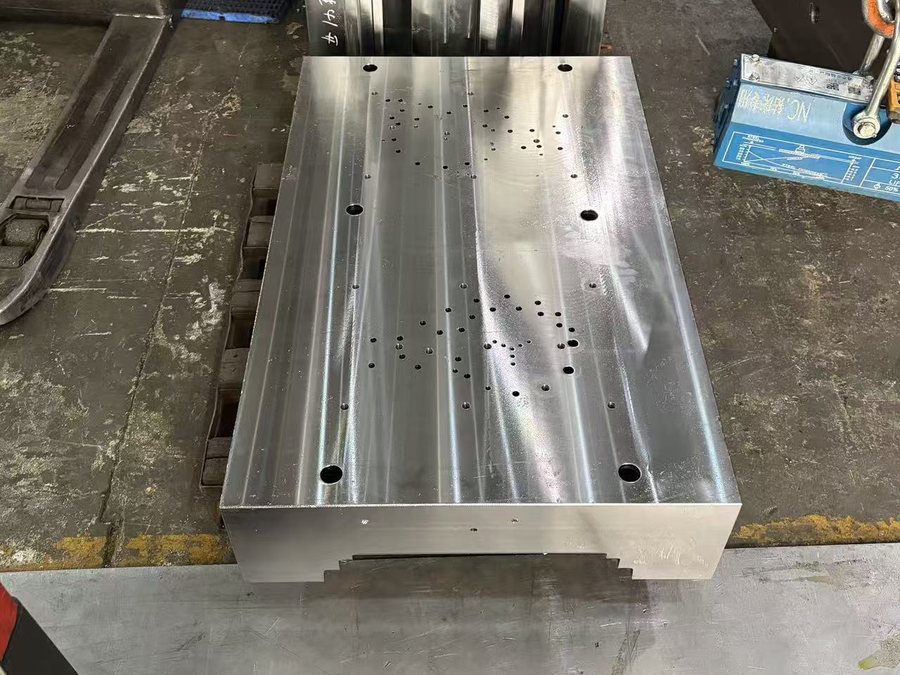

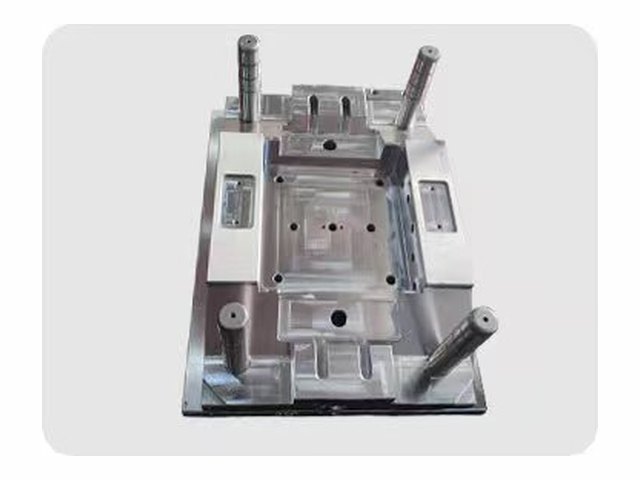

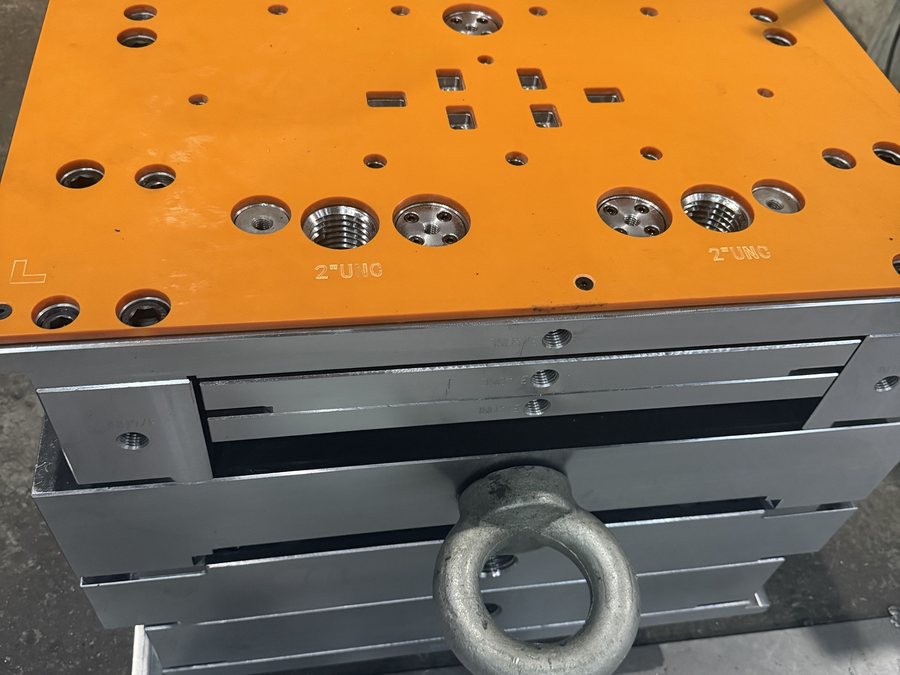

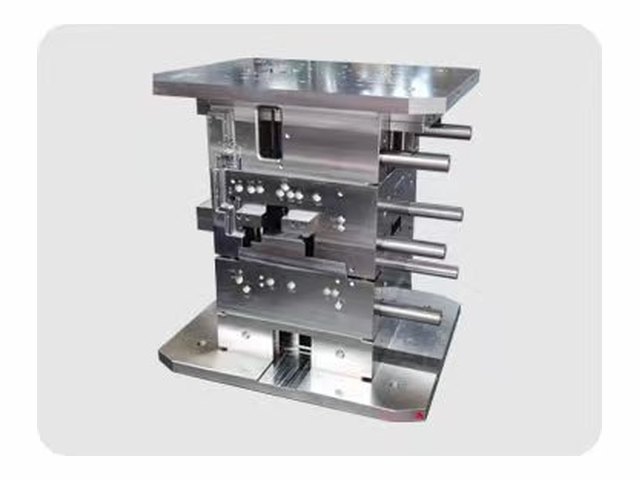

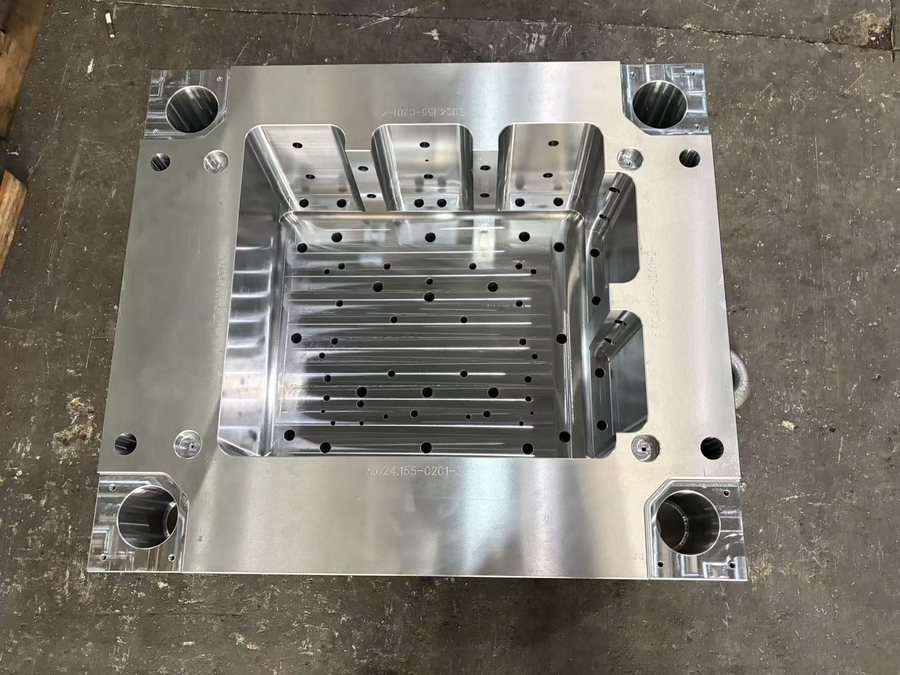

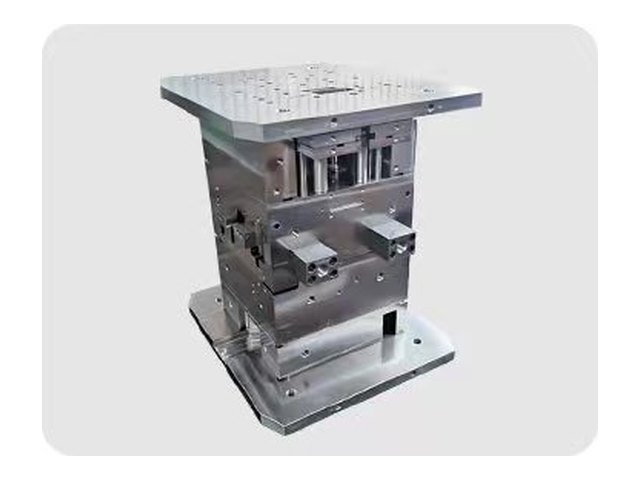

A sample of recent work — B-plates, thick plates, die-casting frames and finished bases. Scroll sideways to see more.
Send your drawing — most custom work is quoted within one business day.

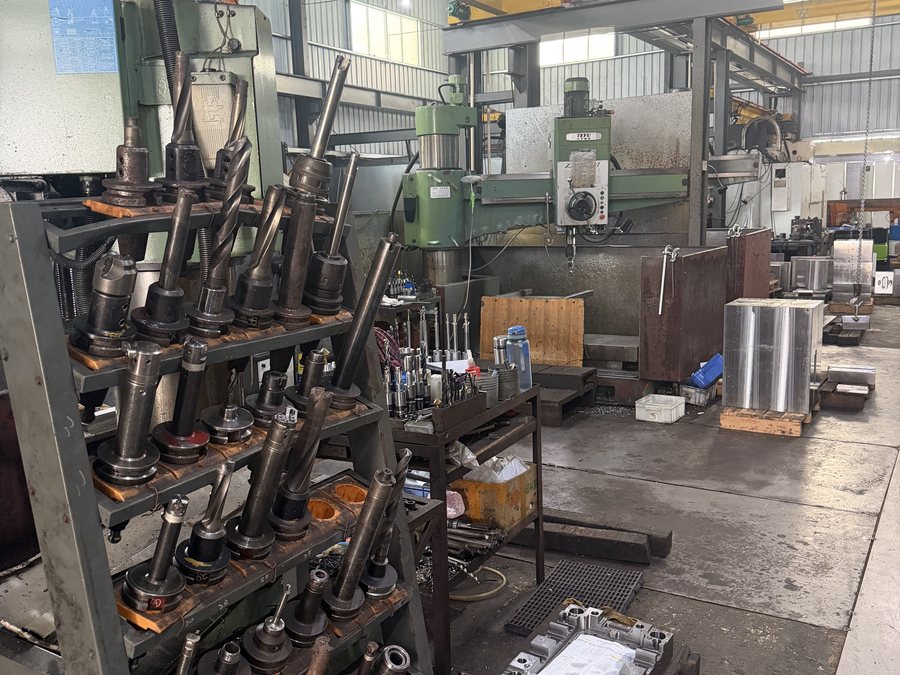

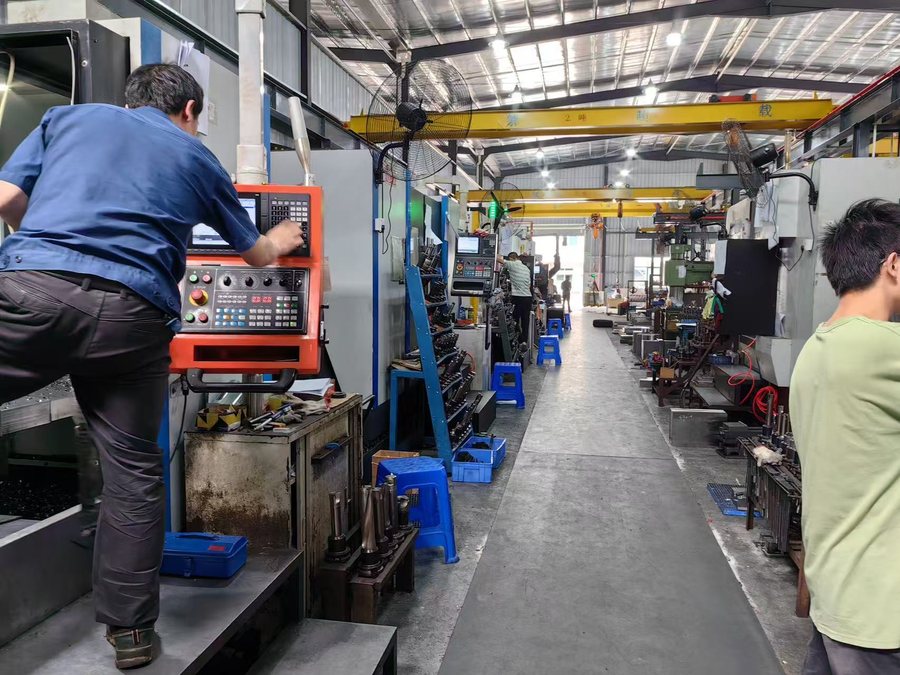

On the shop floor

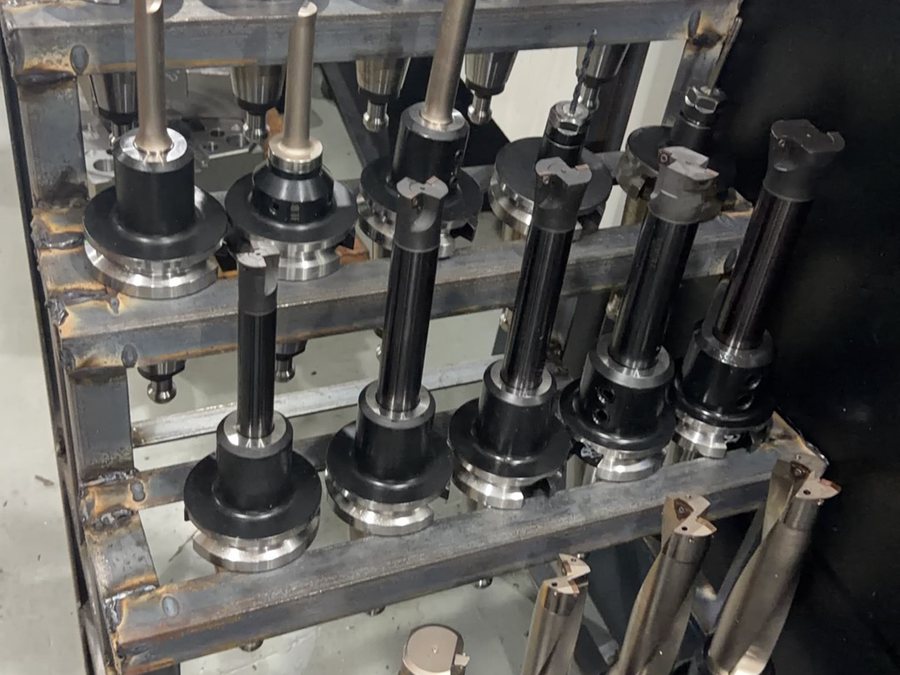

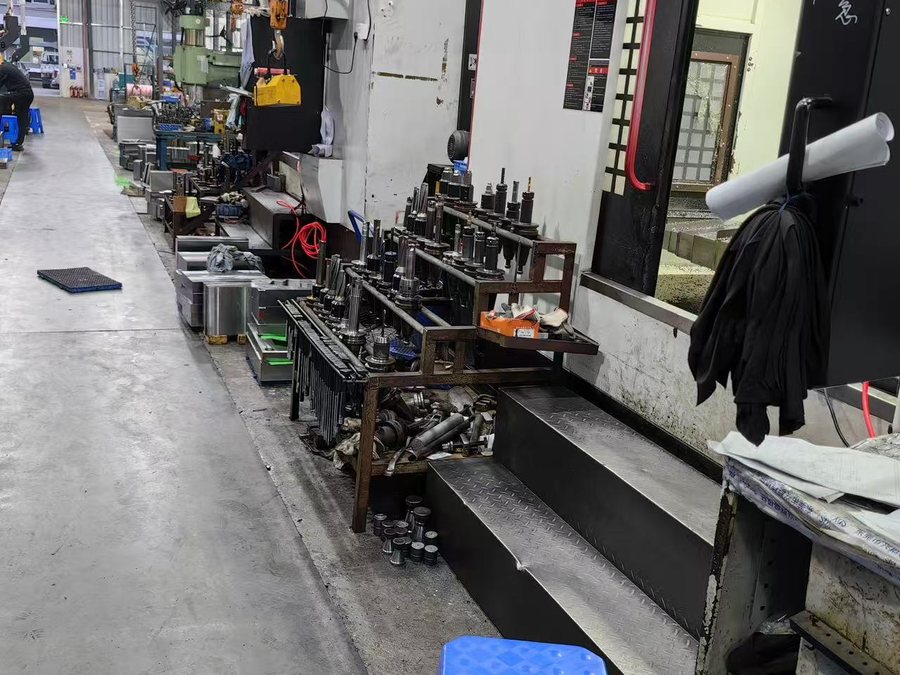

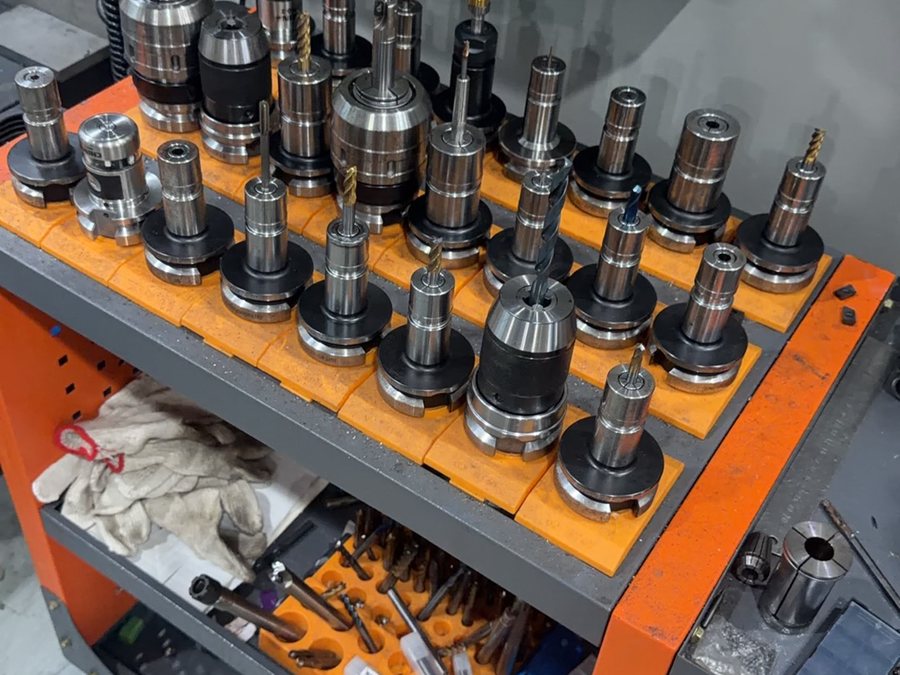

Tool holders stay on the machine and the machines stay loaded, so a changeover does not wait for a storeman.
Shipping

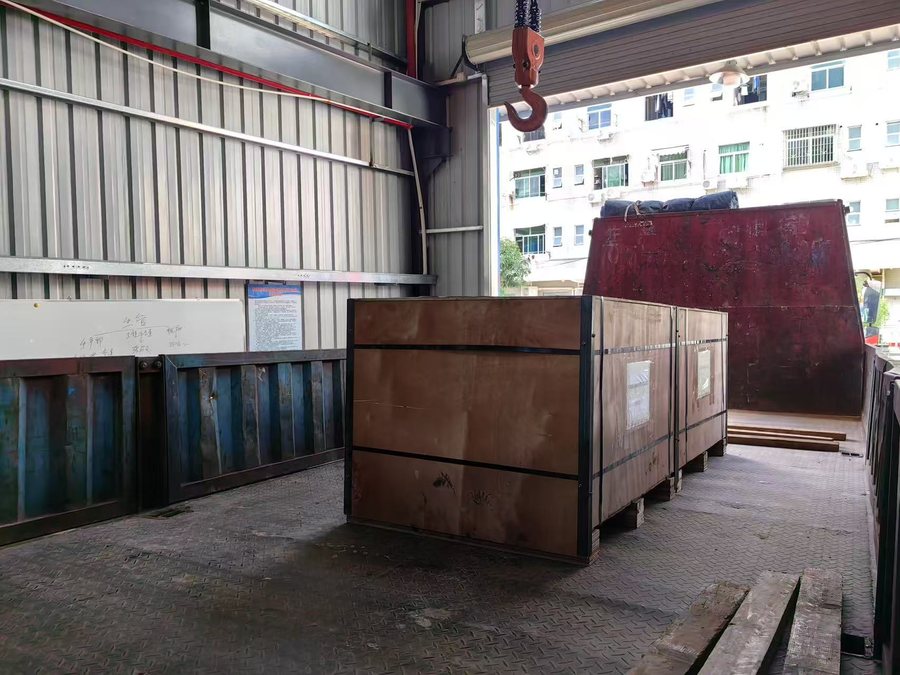

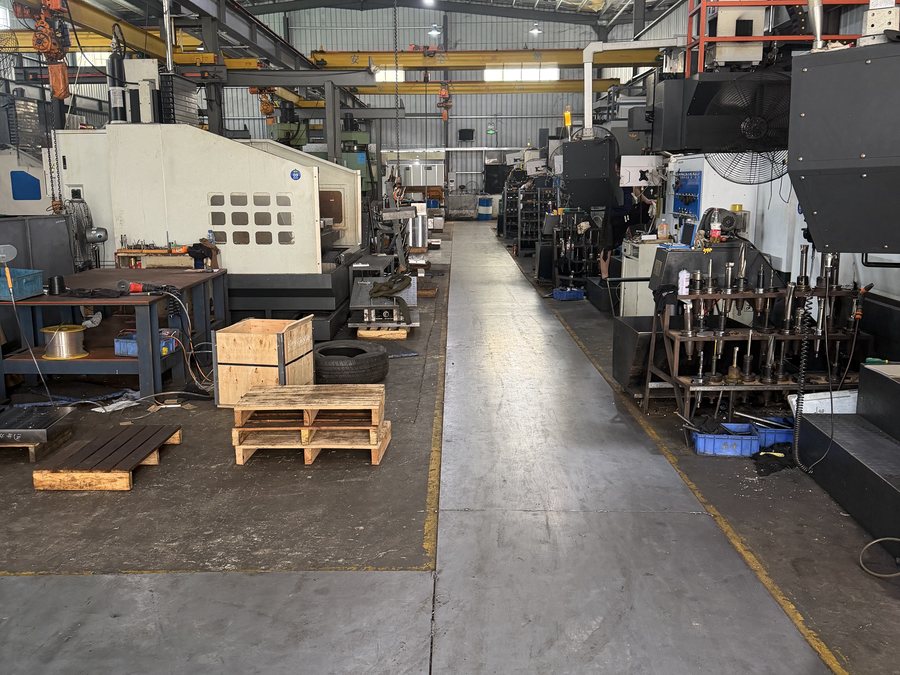

Every base is film-wrapped and crated before it leaves the shop, so it arrives as it was measured.
Capabilities & order terms
The table below is what buyers and mold designers normally ask before sending a drawing. Terms are stated up front so your purchasing team can approve without a second round of emails.
| Product range | Mold base / mold frame (standard and custom non-standard), die casting mold frame, die set, large machined plates, mold steel |
|---|---|
| Machining | Three-axis CNC milling — rough and finish machining in-house |
| Inspection | Coordinate measuring machine (CMM) before packing; inspection records can be supplied with the shipment |
| Steel grades | S50C (1.1730) · P20 (1.2311 / 1.2312) · forged P20 · 718 · 718H · 738 · 738H · 4Cr13 · 420H · S136H Confirm the grade on your drawing with the RFQ. Forged P20 is available where core strength matters. |
| Size | From single plates to large mechanical plates — send the drawing and we will confirm the envelope |
| Hardness | HRC52 hardened mold bases available on request |
| Tolerance | ±0.02 mm on fitting and ground features — mold pockets, guide-pillar bores, shut-off faces, plate parallelism. General non-fitting dimensions: 0.3 mm. Above 600 mm the tolerance is agreed case by case — contact us with the drawing. We confirm the figure we will hold before quoting, so there is no dispute at inspection. |
| Flatness / parallelism / squareness | Ground working faces flat to 0.02 mm / 100 mm · A/B plate parallelism 0.02 mm / 100 mm · datum-face perpendicularity 0.02 mm / 100 mm · guide-pillar bore position ±0.02 mm · ground surface finish Ra 0.8 µm |
| Minimum order | 1 set — mold base plates are not split, so small runs can be accepted |
| Lead time | 7 days for most mold bases, order to shipment. Complex or very large work is quoted with a firm date before we start. |
| Packing | Film-wrapped and packed in wooden cases, suitable for container loading |
| Payment | 30% deposit, 70% before shipment. Credit terms are not offered to new customers. |
| Quotation | FOB China basis; price returned against your drawing, usually within one business day |
Quality control
A mold base that is out of tolerance costs you a rework cycle in your own shop. So every mold base is measured on a coordinate measuring machine before it leaves the building, and the reading goes out with the shipment.
Packing is film wrap plus wooden case, and we can photograph the parts and the case before dispatch if you need to pre-clear them with your warehouse.

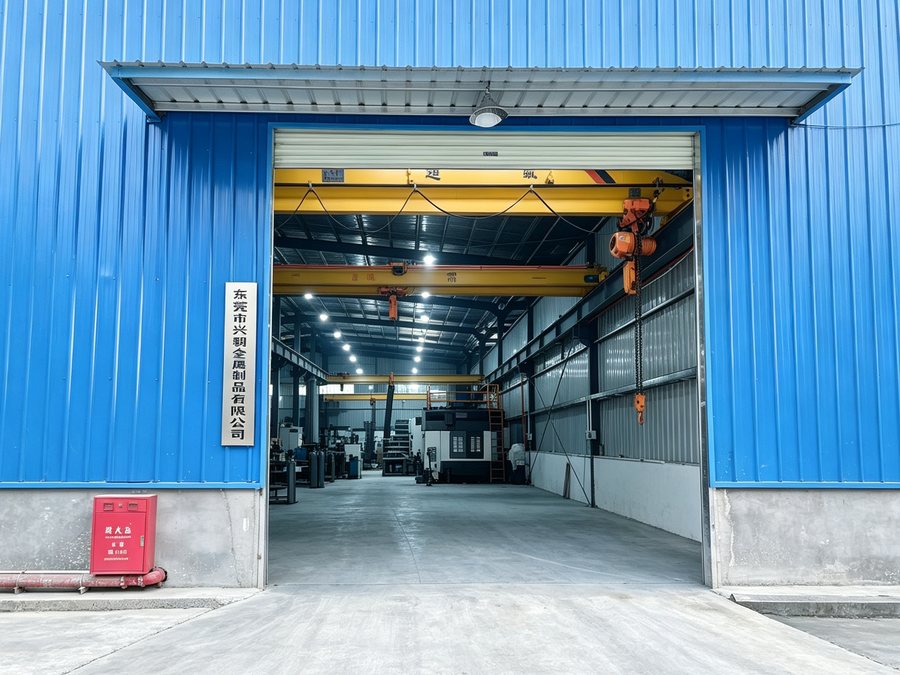

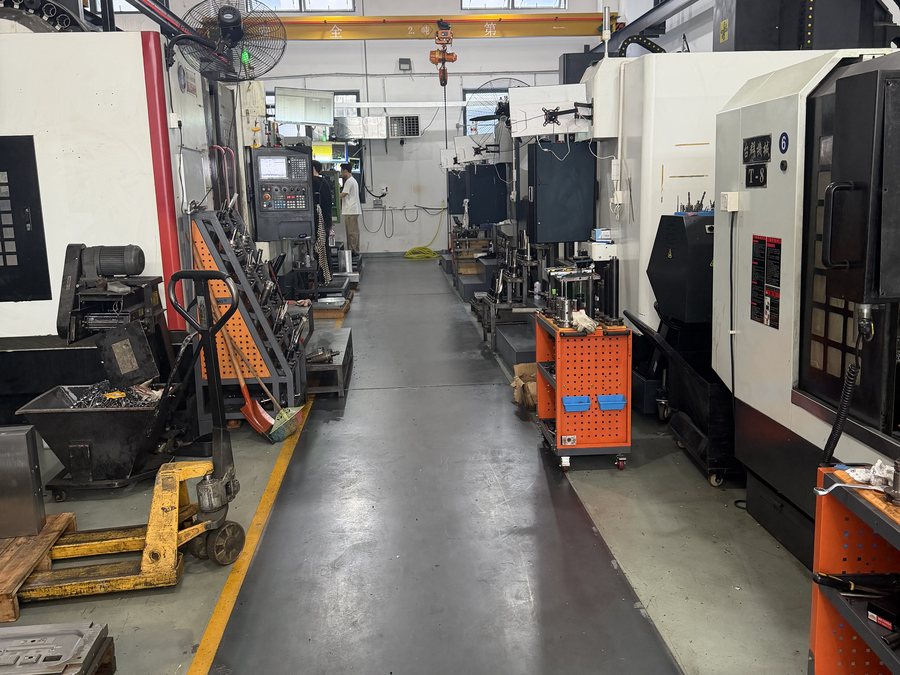

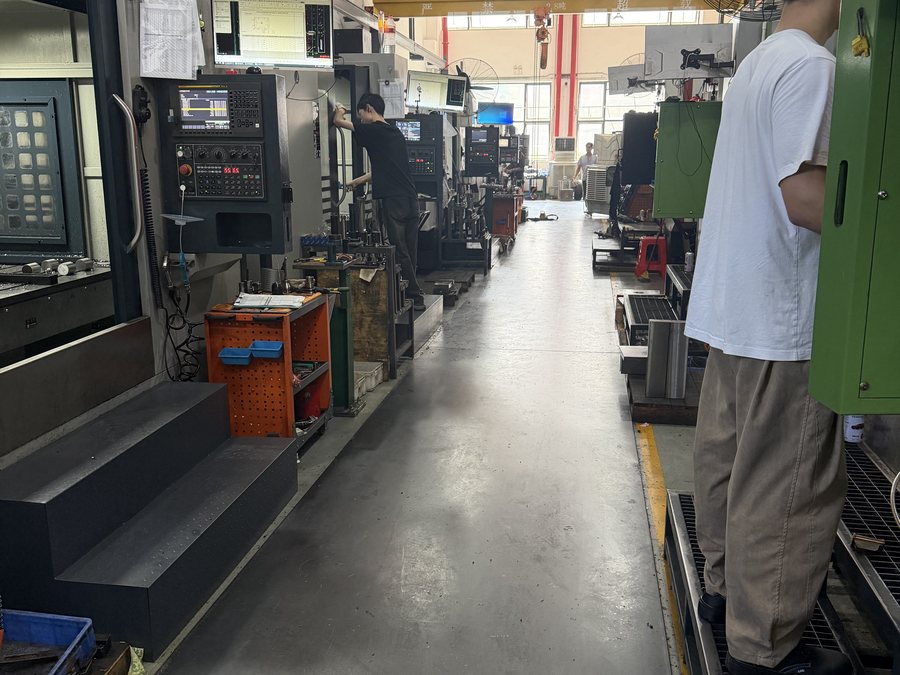

The factory
Every photo on this page was taken in our workshop. No stock imagery, no borrowed machines.
Request a quotation
Fill in what you know. The more of these fields you complete, the closer the first quotation will be — no back-and-forth to establish basic facts.
